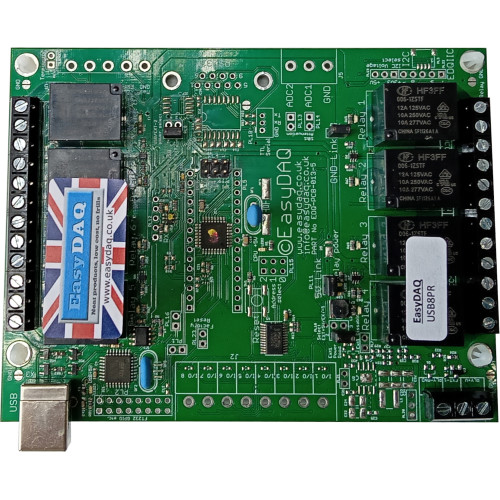

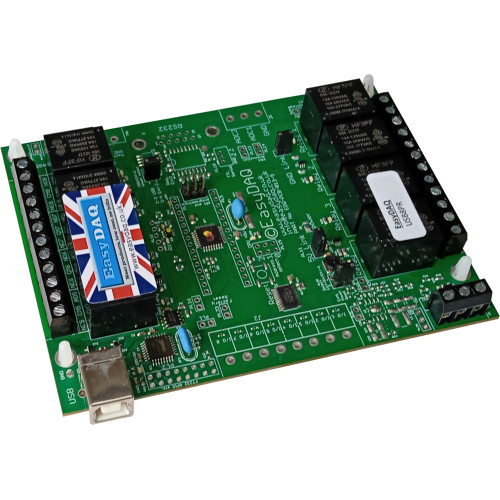

A general purpose, USB powered board with 8 opto-isolated 240VAC/10A power relays, and fixed screw terminal blocks.
Access to all relay contacts is via fixed screw terminal block connectors along the edge of the card. Suitable for a wide range of control and mains voltage power switching purposes . The board comes with LED relay channel & USB +5V supply status indicators and nylon feet in each corner which will take self tapping screws or allow the cards to be stacked.
There is also a perspex cover available which offers general protection of the card and prevents accidental contact with any of the relay contacts or screw terminal connections. In addition, there is a DIN rail mount/cover option available.
These are industry standard relay boards and products. High quality, for professional electronic automation, connectivity, and control.
Easydaq products are used in research and education, security, industrial applications, power and energy management, motor and device control. There are uses across various industries, including maritime , rail, automotive, automation, measuring and calibration, agriculture , medical, sanitation, light and power solutions, fire protection, security, and many more.
You can order any of our boards with customisations or without connectors fitted - contact us for prices
Download Draft V2.x datasheet for the latest EDQ-PCB-013-x based boards
EasyDAQ is primarily a business-to business seller, supplying products around the world, therefore advertised prices exclude VAT. Customers in the UK and Northern Ireland will be charged VAT at checkout.
| Operational Parameters | |
| Manufacturer | EASYDAQ |
| Control Interface | USB |
| Relay Channels | 8 |
| Relay Type | POWER |
| Opto-isolated | YES |
| Connector | SINGLE PART CONNECTORS |
USB8PR
- Brand: Easydaq
- Product Code:USB8PR
- Availability:In Stock
-
£73.67
-
- 10 or more £58.94
- 25 or more £52.31
- 50 or more £49.06
- 100 or more £46.12
- 250 or more £43.10
- 500 or more £39.93
