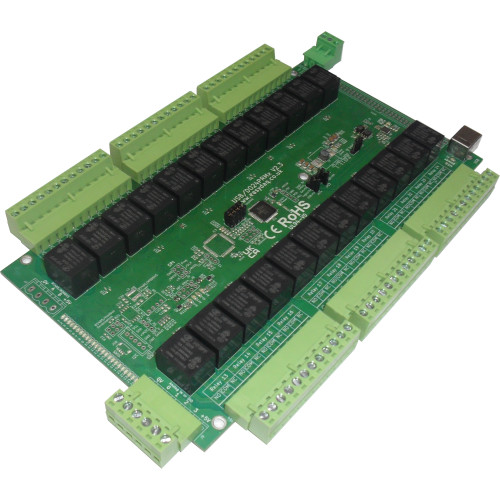

USB powered & controlled, 24 channel relay card. The PCB Tracking is designed to handle 240VAC @ 10 amps, relays are SPDT, Form C, changeover type, with N/O, COM and N/C contacts taken to two-part screw terminal blocks allowing quick connect/ disconnect of card.  USB power will support the activation of up to 8 off the 6V relays. See Link Options. NEW on the Mk 2 board:  Onboard +9 to +30V DC-DC power supply. DC external power can be connected via a 3-way screw terminal connector to operate more than 8 relays (See Link Options). The board can be ordered in 5V, 12V or 24V operating relay versions.  New on the Mk 2 board  : Optional full isolation between USB bus and Relay operation. See Link Options. Operate/release time 5mS Max. LED channel & supply status indicators are located along one end of the card giving visual indication of activation status. New on the Mk 2 board : Tx and RX data indicators for debugging.

A perspex cover and base is available which offers general protection of the card and prevents accidental contact with any of the pcb connections or screw terminal connections.  In addition, there is a DIN rail mount/cover option available. These are industry standard relay boards and products.  High quality, for professional electronic  automation,  connectivity, and control.

Easydaq products are used in research and education, security, industrial applications, power and energy management,  motor and device  control. There are uses across various industries, including  maritime , rail,  automotive, automation, measuring and calibration, agriculture , medical, sanitation, light and power solutions, security, and many more.

Download Datasheet - New V2 design draft document for EDQ-PCB-018-1 and EDQ-PCB-018-2.

Download Datasheet - New V2.1 design draft document for EDQ-PCB-018-3.
